JW Fishers SIDE SCAN SONAR (600 kHz), SHIPS FREE, starting at, $23,995.00

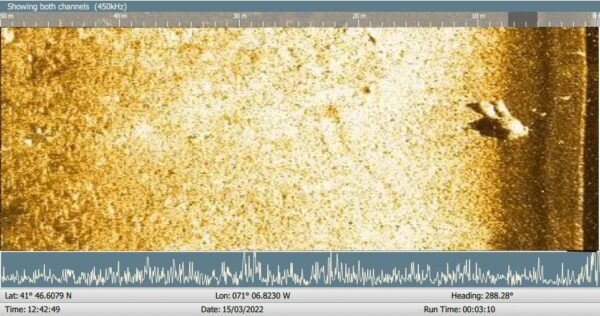

Fishers side scan sonar comes with a 500-foot depth rated towfish, 150 feet of cable (Kevlar reinforced), a laptop computer, a GPS, and Fishers SONAR VIEW software. The computer displays a real time color image of the ocean floor. The screen is split down the middle with the right side showing the ocean bottom on the right side of the vessel, and the left side of the screen shows the ocean bottom on the left side of the vessel.

The SONAR VIEW software gives the side scan operator complete control of all system functions with easy to use pull-down menus and icons on the screen. Size measurement tool, target height off bottom, annotation, and auto bottom tracking all standard. The operator can change colors, ranges, amplifier gain, and other controls with a click of the mouse. With the computer, side scan images can be stored in memory for playback and post processing at any time in the future. Small file sections including screenshots can be copied for emailing. With the GPS connected to the computer the position coordinates are captured with the side scan data. Once GPS is connected, the mouse cursor can be placed on any object on the screen and its position coordinates will be displayed. Sonar files can be stored on the computer’s hard drive or an external memory component.

An optional Sonar Coverage Mapping feature shows the boat’s path as it travels over the search area and the sonar coverage swath. It’s all displayed on a grid with latitude and longitude as the X and Y axis. This option makes it easy to search even large areas and ensures no part of the area is missed. The map can be shown in a separate window on the same screen as the side scan image, or the map can be displayed on a separate monitor. The user can also control the size of the map. The map can be exported as an image with a KML file to allow it to be easily overlaid on other mapping programs (as shown at the right). All data can be stored on the PC hard-drive or USB component

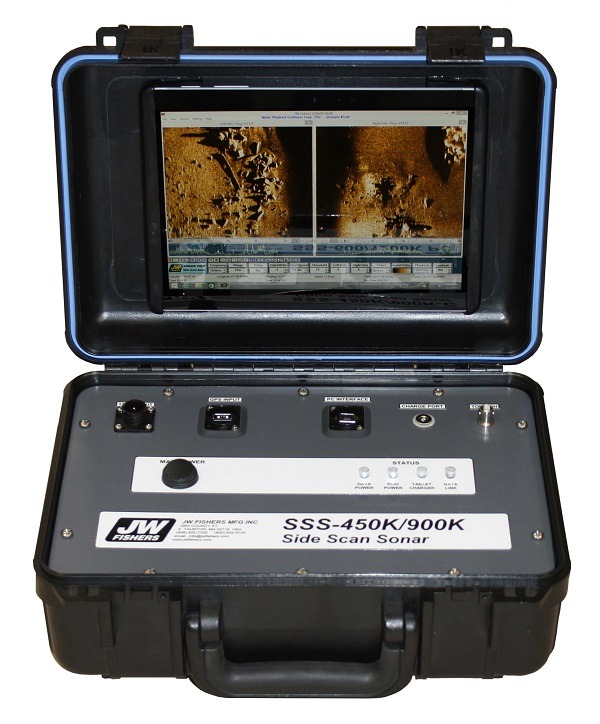

A Microsoft Surface® tablet (optional) can be ordered with the Side Scan system. The tablet is mounted inside the control box lid for a “sleeker” package.

An optional GETAC S410 Semi-Rugged Laptop available for small, open boat operations. Raising the bar on the semi-rugged notebook class, the new S410 is MIL-STD-810G certified, more rugged, slimmer and lighter than ever before. The all-new S410 boasts the latest computing innovations, including a significant CPU performance boost, massive graphics enhancements, and a multitude of game-changing capabilities and options. The S410 puts unmatched power and adaptability into the hands of professionals in field service, manufacturing, public safety sectors.

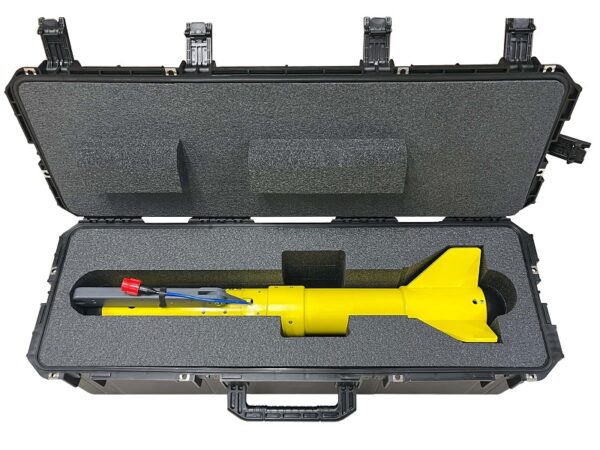

Portability, rugged construction, low cost, and ease of operation. Four models to choose from. Larger towfish ensures stability and provides high quality sonar images. Dual frequency has both high and low frequency transducers in one towfish. Computer and software included with the system. Fishers SONAR VIEW software provides the user with lots of flexibility in displaying and manipulating sonar images.

Covered by JW Fishers exclusive, unconditional TWO YEAR warranty: Within 2 years of receiving the product there is any defect in material or workmanship, JW Fishers will repair or replace the product at their discretion. After 2 years there is a fee ($125 to $995 depending on the product) to check the problem with your product and respond with a plan and price to repair.

We’d like to know if you find a lower price !!

There are pros and cons to each frequency as explained at the JW Fishers site:

https://www.jwfishers.com/products/sss.html

Please call or email us with any questions.
