Nuvair, O2 Quickstick · Oxygen Analyzer for Nitrox Divers, $300
$300.00
Buy now, pay over time with PayPal Credit:
No interest if paid in full in 6 months on purchases of $99 or more.
Subject to Credit approval. See Terms.
1 of 1Availability: Available on backorder
This is not the usual Cheap Portable, this is the best and will last years.
Your O2 Portable unit is comes with:
One Analox oxygen sensor 9212-5AD, a 9v battery, a domed high pressure flow adaptor and 1 metre of tubing.
You are able to purchase spares directly from us.
• 9100-9212-5AD – Spare oxygen cell for the Analox O2 Portable
• 8000-0002A- High pressure DII adaptor
• MIO2HO – 1 metre neoprene hose
| Range | 0.1% to 100% in O2 |
| Accuracy | ±1% of reading over range 0 to 50% when calibrated on air in accordance with the manual ±2% of reading over range 0 to 100% when calibrated on certified pure oxygen in accordance with the manual |
| Sensor Warranty | 2 years (graded) |
| Sensor Response | <15 seconds to T90 |
| Power | 9V Alkaline (PP3) |
| Operating Temp | 5°C to 50°C |
| Dimensions | 64mm x 98mm x 36mm (w x h x d) |
| Weight | 200g |
Gas cylinders may have been filled incorrectly, but how do you know?
By using the O2 Portable oxygen monitor which is designed to provide fast and accurate sample readings from cylinders containing different levels of oxygen (O2).
Simply switch the unit on and it is ready to use as an instant spot check. The handheld unit is quick and easy to operate, with a robust design.
We need to tell you, Nuvair is a fantastic company, have treated us very well over many years, so we know you won’t be disappointed.
The Nuvair O2 Quickstick is the first diver-friendly oxygen analyzer available anywhere! Easy to use, effective, rugged and amazingly affordable, it is equally convenient for non-divers who need a quick and reliable oxygen analysis above water. The O2 Quickstick is designed for anyone who wants the security and convenience of having their own oxygen analyzer without having to pay a small fortune to own one.
Features
- Fast response, thermally compensated sensor
- Completely sealed, water-resistant housing
- No hoses, adapters, or cables required
- Easy calibration
- User-replaceable battery and sensor
- Magnetic waterproof on/off switch to preserve battery life
- Anodized marine-grade aluminum body—nearly indestructible!
- Pocket size

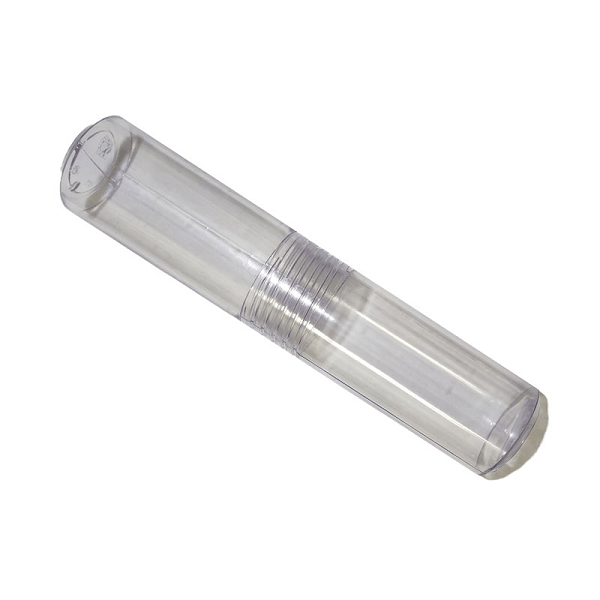

- Included screw-together protective sleeve (SKUs GP-40-090-I and GP-40-125-A)
Specifications¹
| Flow Rate | 0.5–2 L/min² |
|---|---|
| Resolution | 0.1% |
| Accuracy | Within ±1% of full scale at constant temperature and pressure (0-1 atm) when calibrated with 100% oxygen |
| Sensor Type | Electrochemical |
| Expected Sensor Life | 36 months in air at 77°F (25°C) and 50% rh |
| Range | 0-100% oxygen |
| Response Time | Less than 6 seconds to 90% of final value |
| Operating Temperature | 32–104°F (0–40°C) |
| Operating Humidity | 0–99% rh (non-condensing) |
| Storage Temperature | 32–122°F (0–50°C) |
| Power | 9V alkaline battery |
| Dimensions | 9 (L) x 1.5 (W) in (23 x 4 cm) |
| Weight | 21.1 oz (.34 kg) |
| Warranty | 0–12 Months free replacement 13–18 Months 50% off replacement 19–24 Months 25% off replacement |
| Replacement Sensor | Oxygen Sensor 9510 |
¹ All specifications are at ambient/sea level, 77°F (25°C).
² Please Note: The Nuvair O2 Quickstick’s dome-shaped end cover is designed to restrict gas flow to the sensor. If the tank valve and analyzer are not properly operated, sensor damage or false readings can occur. Inaccurate gas analysis can lead to serious personal injury or death. Consult the O2 Quickstick User Manual for proper operation.
