Nuvair Pro O2 Handheld Analyzer, $300
$300.00
Buy now, pay over time with PayPal Credit:
No interest if paid in full in 6 months on purchases of $99 or more.
Subject to Credit approval. See Terms.
1 of 1Availability: Available on backorder
This is not the usual Cheap Portable, this is the best and will last years.
Your O2 Portable unit is comes with:
One Analox oxygen sensor 9212-5AD, a 9v battery, a domed high pressure flow adaptor and 1 metre of tubing.
You are able to purchase spares directly from us.
• 9100-9212-5AD – Spare oxygen cell for the Analox O2 Portable
• 8000-0002A- High pressure DII adaptor
• MIO2HO – 1 metre neoprene hose
| Range | 0.1% to 100% in O2 |
| Accuracy | ±1% of reading over range 0 to 50% when calibrated on air in accordance with the manual ±2% of reading over range 0 to 100% when calibrated on certified pure oxygen in accordance with the manual |
| Sensor Warranty | 2 years (graded) |
| Sensor Response | <15 seconds to T90 |
| Power | 9V Alkaline (PP3) |
| Operating Temp | 5°C to 50°C |
| Dimensions | 64mm x 98mm x 36mm (w x h x d) |
| Weight | 200g |
Gas cylinders may have been filled incorrectly, but how do you know?
By using the O2 Portable oxygen monitor which is designed to provide fast and accurate sample readings from cylinders containing different levels of oxygen (O2).
Simply switch the unit on and it is ready to use as an instant spot check. The handheld unit is quick and easy to operate, with a robust design.
We need to tell you, Nuvair is a fantastic company, have treated us very well over many years, so we know you won’t be disappointed.

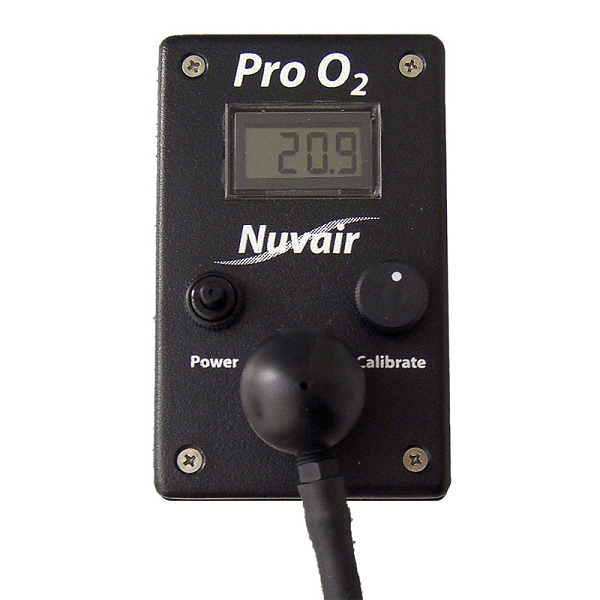

The Nuvair Pro O2 Handheld Analyzer measures oxygen levels in mixed gases from 1% to 100% oxygen. It comes with a water- and impact-resistant case and is available in three power options. The oxygen sensor and batteries are user-replaceable.
Easy-to-operate, extremely accurate and stable, the Nuvair Pro O2 is preferred by commercial, military, technical and advanced recreational divers using nitrox. Our water- and impact-resistant case is designed for everyday use in the marine environment. The Pro O2 is also popular with medical, welding, and other industries not related to diving.
To change the battery or sensor, simply remove four screws to have easy access to these user-changeable components. The Nuvair Pro O2 Analyzer can be placed in-line with your compressor during mixed-gas production or used as a standalone unit for testing mixed gas and nitrox individual scuba tanks or storage cylinders. We offer a wide range of accessories for adapting to compressors and diver BC (buoyancy compensator) power inflators. All Nuvair Pro O2 units are built and tested in-house, and are ready to use upon receipt.
WARNING: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required. A faulty Flow Restrictor can lead to a false analyzer reading. Flow Restrictors should be regularly tested with a Flow Meter. Inaccurate gas analysis can lead to serious personal injury or death.
Choose one of three available power options by using the Power Options dropdown menu (above).
Specifications
| Maximum Gas Flow Rate | 0.5–2 L/min (~1 bar) |
|---|---|
| Display Accuracy | ±1% |
| Sensor Type | Electrochemical |
| Expected Cell Life | 36 months in air at 25°C (77°F) and 50% rh |
| Range | 0–100% oxygen |
| Response Time | Response time <6 seconds for 90% of final value |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 32° to 122°F (0° to 50°C) |
| Operating Humidity | 0–100% rh, non-condensing |
| Power | 9-volt battery, rechargeable lithium-ion battery, or wall plug-in |
| Dimensions (L x W x H) |
4-1/8 × 2-1/2 × 1-3/4″ (10.5 × 6.2 × 4.4 cm) |
| Weight | 7 oz (200 g) |
| Warranty | 0 – 12 months Free Replacement 13 – 18 months 50% Off Replacement 19 – 24 months 25% Off Replacement |
| Replacement Sensor | 9505 |
